Product series · ZBW

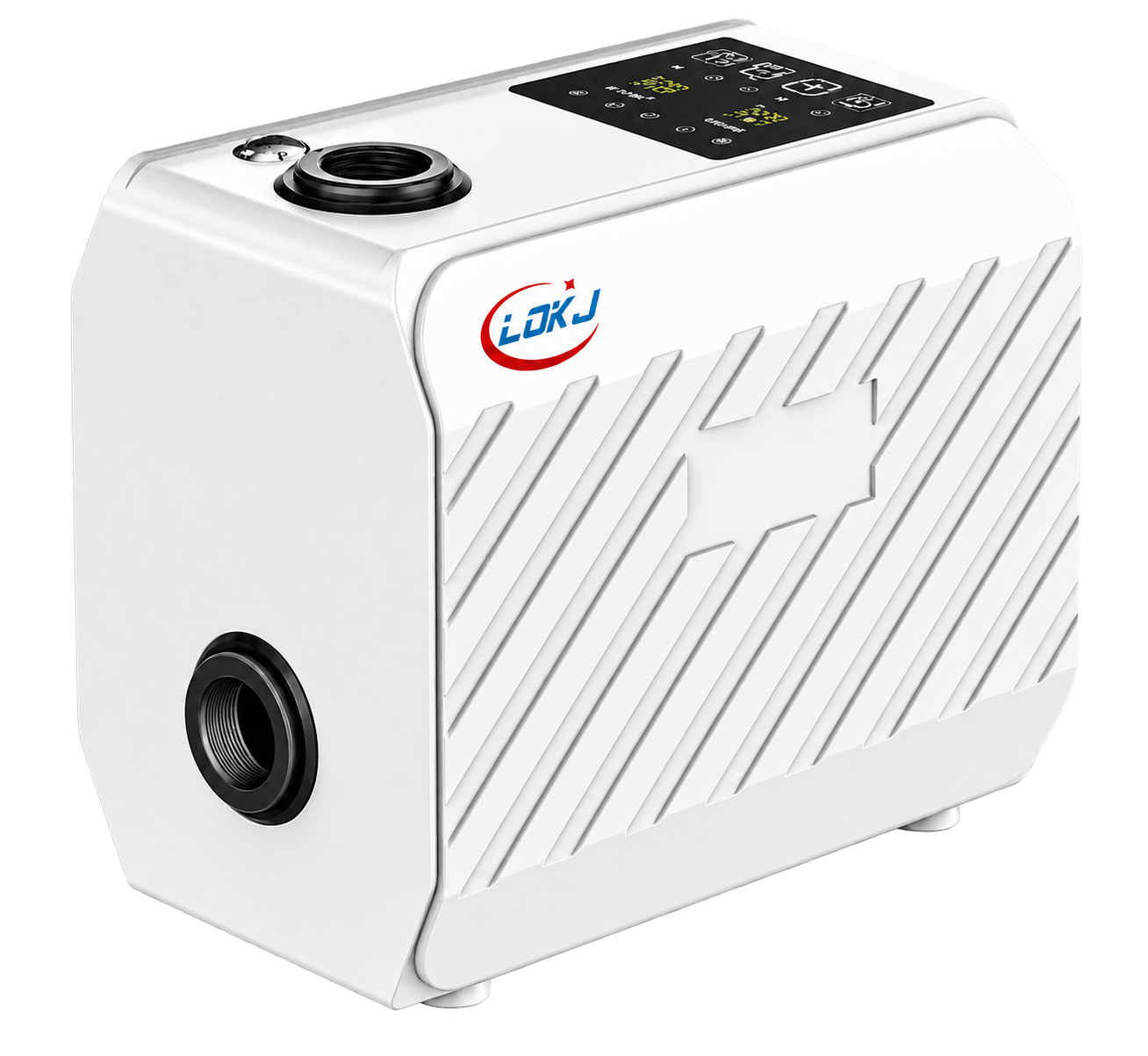

ZBW Smart Booster Pumps

Automatic and variable-frequency booster configurations for controlled clean-water pressure in buildings and utility systems.

Request model confirmation

Typical use

Building pressure boosting
Constant-pressure supply
Automatic water systems

Selection note

Peak flow, minimum inlet pressure, set pressure, number of outlets, control mode and electrical supply are required for selection.

Source scope

15 models across 4 outlet or configuration ranges.

Product gallery

Representative configurations.

Appearance, labels, controller and supplied accessories can vary by model and order scope.

Technical data

Models from the supplied catalogue.

Values below are transcribed from the supplied source deck. A slash indicates multiple published values. Confirm the final datasheet and certified curve in the quotation.

Range 19

ZBW -DN25 Constant Pressure | Smart Water Supply

5 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	V50HZ	L ，W，H(MM)
YM-180	0.18	2	28	9	180-240V110V/60HZ+150	290x220x280
YM-250	0.25	2.5	34	9		290x220x280
YM-400	0.4	2.9	42	9		290x220x280
YM-600	0.6	3.2	47	9		320x220x300
YM-800	0.8	3.7	57	9		320x220x300

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 20

ZBW -DN25 Constant Pressure | Smart Water Supply

4 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	Voltage(V)	L ，W，H(MM)
GWZB-35-0.45	0.45	3.5	35	9	180-240V110V/60HZ+150	290x220x280
GWZB-45-0.65	0.65	4	40	9		290x220x280
GWZB-50-0.85	0.85	5	55	9		290x220x280
GWZB-55-1.1	1.1	5.5	60	9		320x220x300

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 21

ZBW -DN25 VFD Control | Constant Pressure | Smart Water Supply

4 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	Voltage(V)	L ，W，H(MM)
GWZB-35-0.45	0.45	3.5	35	9	180-240V110V/60HZ+150	290x220x280
GWZB-45-0.65	0.65	4	40	9		290x220x280
GWZB-50-0.85	0.85	5	55	9		290x220x280
GWZB-55-1.1	1.1	5.5	60	9		320x220x300

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 22

ZBW -DN40/50 Constant Pressure | Smart Water Supply

2 listed models

Model	P(kW)	MaxQ(m³/h)	MaxH(M)	MAXSUCT	Voltage(V)	L ，W，H(MM)
40GWZB10-70-1.5	1.5	3.5	35	9	180-240V110V/60HZ+150	320x240x310
50GWZB15-70-1.5	0.65	4	40	9		340x240x310

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Need a duty-point review?

Send flow, total head and liquid details.

We will help narrow the model range and identify any information still required.

Prepare a pump brief
